Vertical Centrifugal Casting Process

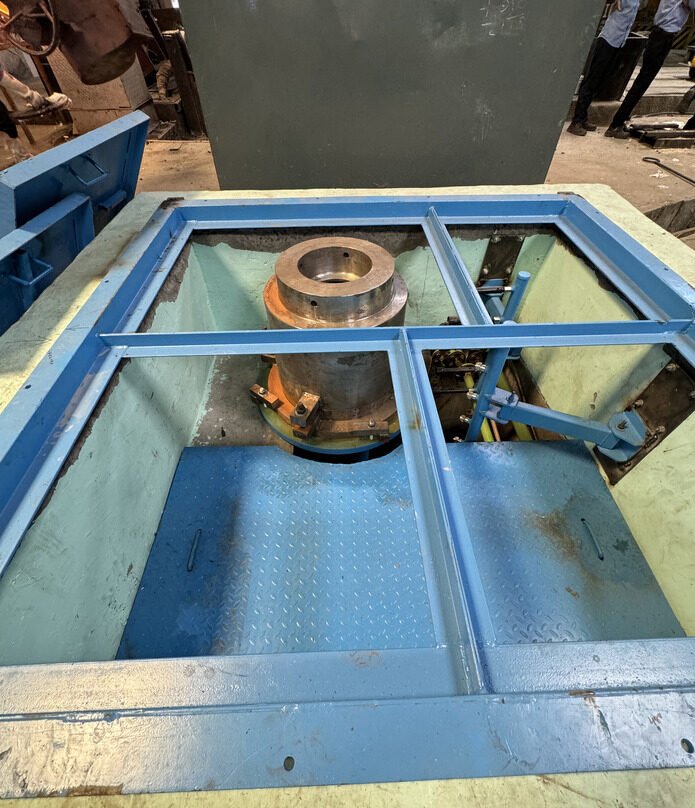

Heavy-Duty Vertical Centrifugal Casting Machines (VCC Series)
Introduction
Vertical centrifugal casting is an advanced casting process used for producing rings, bushings, bearing components, and symmetrical cylindrical castings with superior structural integrity and uniform density.
Gautam Industries Private Limited manufactures heavy-duty Vertical Centrifugal Casting Machines (VCC Series) engineered for precision casting applications across automotive, steel, heat treatment, and petrochemical industries.
What is Vertical Centrifugal Casting?
In vertical centrifugal casting, the mold is positioned vertically and rotates around its vertical axis. Molten metal is poured into the center of the rotating mold, and centrifugal force distributes the metal outward uniformly.
- Uniform wall thickness
- High-density outer structure
- Reduced shrinkage defects
- Improved metallurgical properties
- Suitable for ring and disc-shaped components

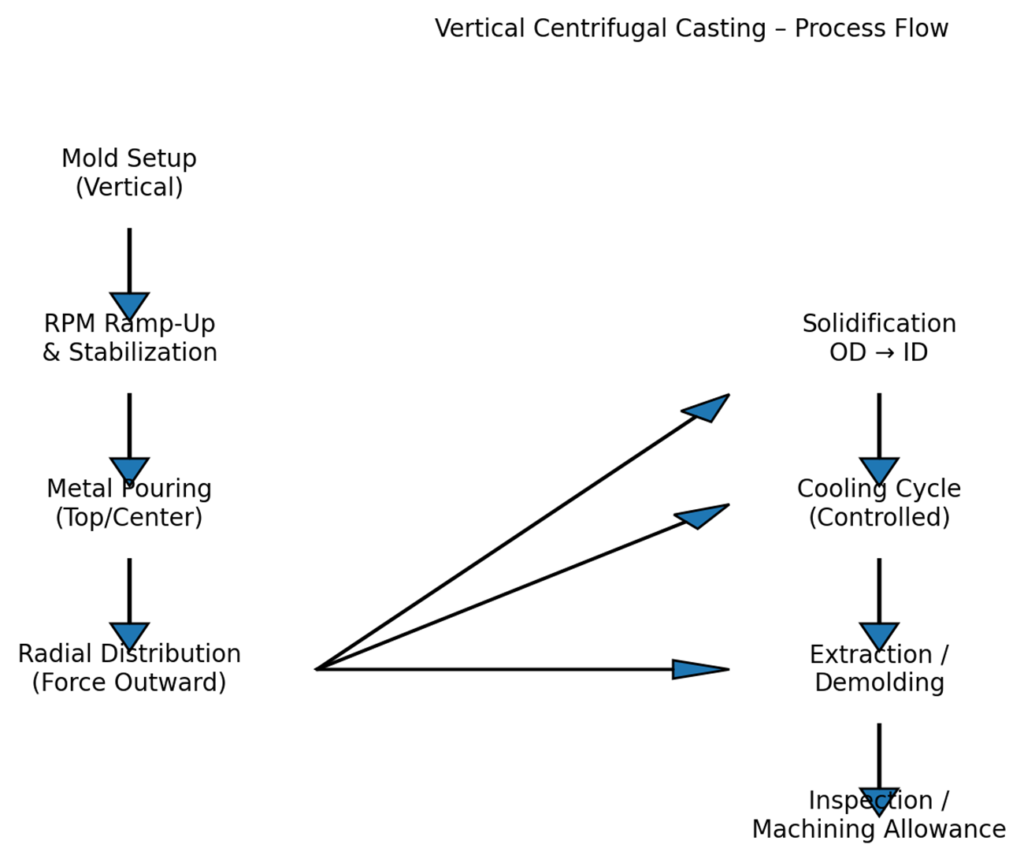

Process Working Principle
- Vertical mold is mounted on a rotating vertical spindle.
- Controlled RPM rotation begins.
- Molten metal is poured into the mold center.
- Centrifugal force pushes metal outward radially.
- Solidification occurs from outer diameter inward.
- Impurities collect toward the inner bore.
- Final casting achieves high density and concentric accuracy.
Technical Diagram Explanation
The mold rotates around its vertical axis, generating radial centrifugal force. This force distributes molten metal toward the outer mold wall, creating a dense outer structure.
Machine Engineering Requirements
- Heavy-duty vertical base structure
- Precision vertical spindle assembly
- Dynamic balancing system
- High-torque rotational drive
- Accurate RPM control system
- Mold clamping and safety locking mechanism
- Vibration control and structural rigidity
Applications
- Automotive – Bearing rings, bushings
- Steel Industry – Rings and sleeves
- Heat Treatment – Furnace components
- Petrochemical – Ring-type castings
- Marine – Bearing housings
Export-Ready Vertical Casting Equipment
- Export-compliant electrical systems
- International safety standards
- On-site commissioning support
- Remote technical assistance
- Spare parts availability
