Heat Treatment & Furnace Industry
Application Based Centrifugal Casting Solutions

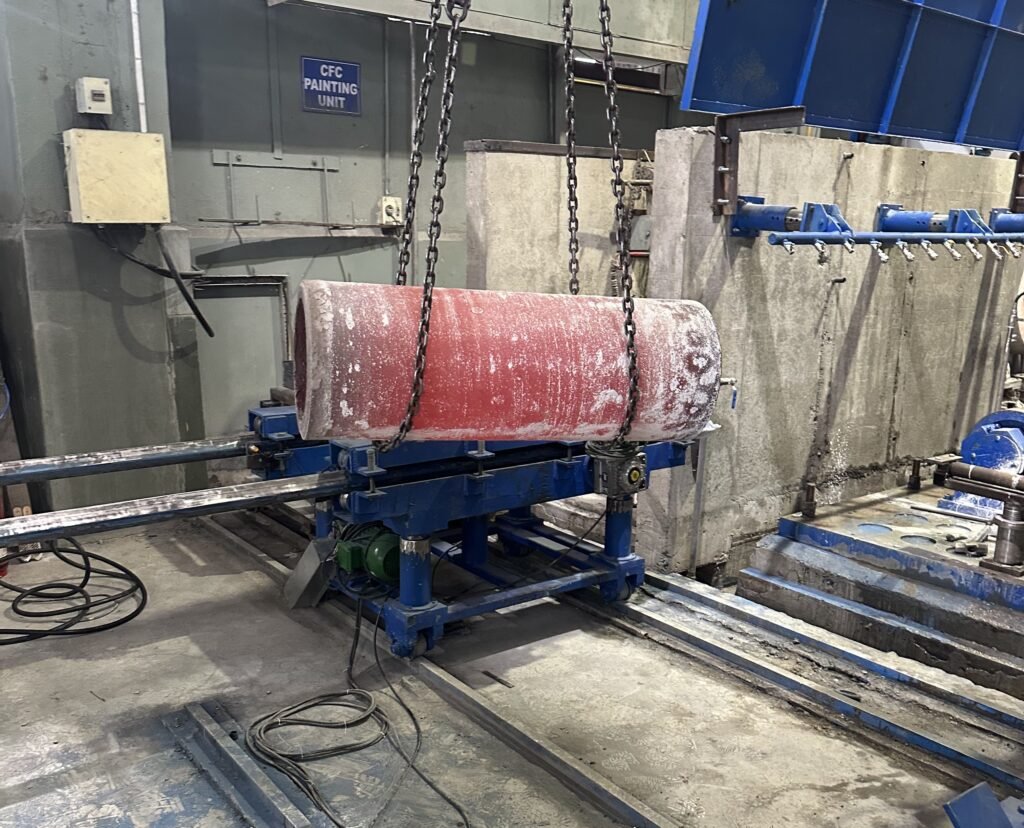

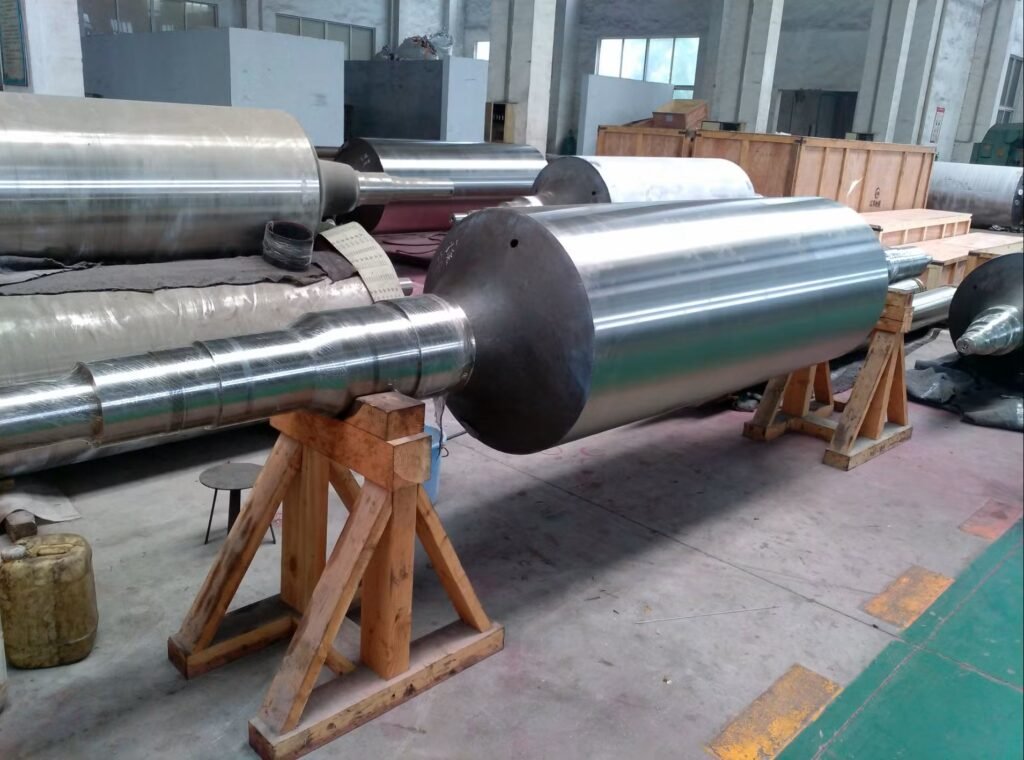

Application 1: Furnace Rolls
Application Overview
Furnace rolls are used in continuous heat treatment lines and steel processing plants. They support material movement at elevated temperatures and must withstand mechanical load combined with thermal stress.
Why Centrifugal Casting for Furnace Rolls?
Centrifugal casting provides superior outer density, structural rigidity, and uniform material properties along the roll length. This enhances load-bearing capacity and thermal fatigue resistance.
Casting Requirements
| Parameter | Requirement |
| Roll Diameter | 200 mm – 1500 mm |
| Length | Up to 5 meters |
| Material Grades | Heat resistant Cr-Ni alloys |
| Load Capacity | High mechanical load support |
| Straightness | Controlled post-solidification machining |
Recommended Machine Solution
HCC Heavy-Duty Series – Horizontal Centrifugal Casting Machine
- Reinforced machine base structure
- High torque motor drive system
- Dynamic balancing for long rolls
- Automated cooling control option
Technical Advantages
- Enhanced thermal fatigue resistance
- Improved structural stability under load
- Reduced casting defects
- Export-ready industrial construction

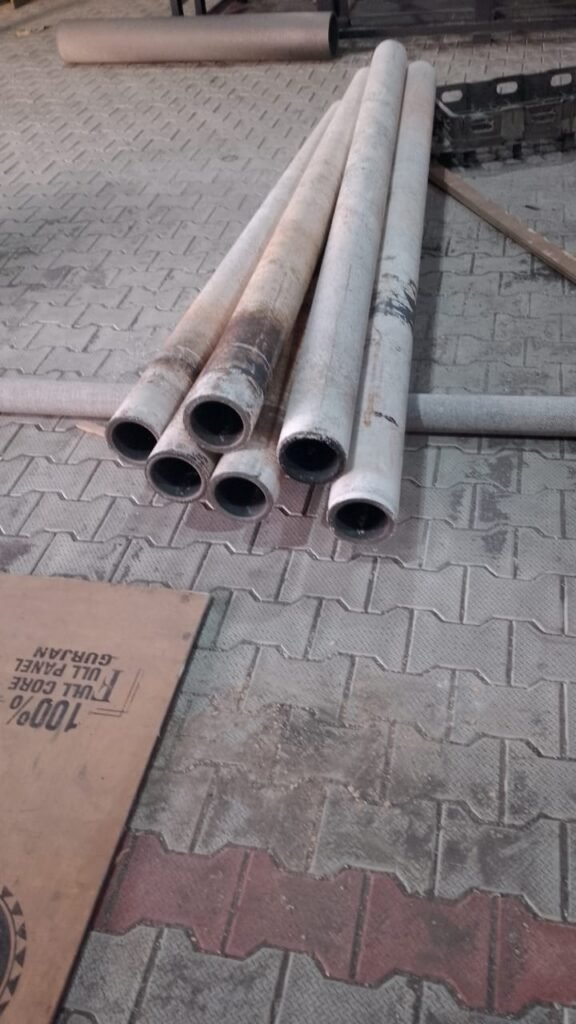

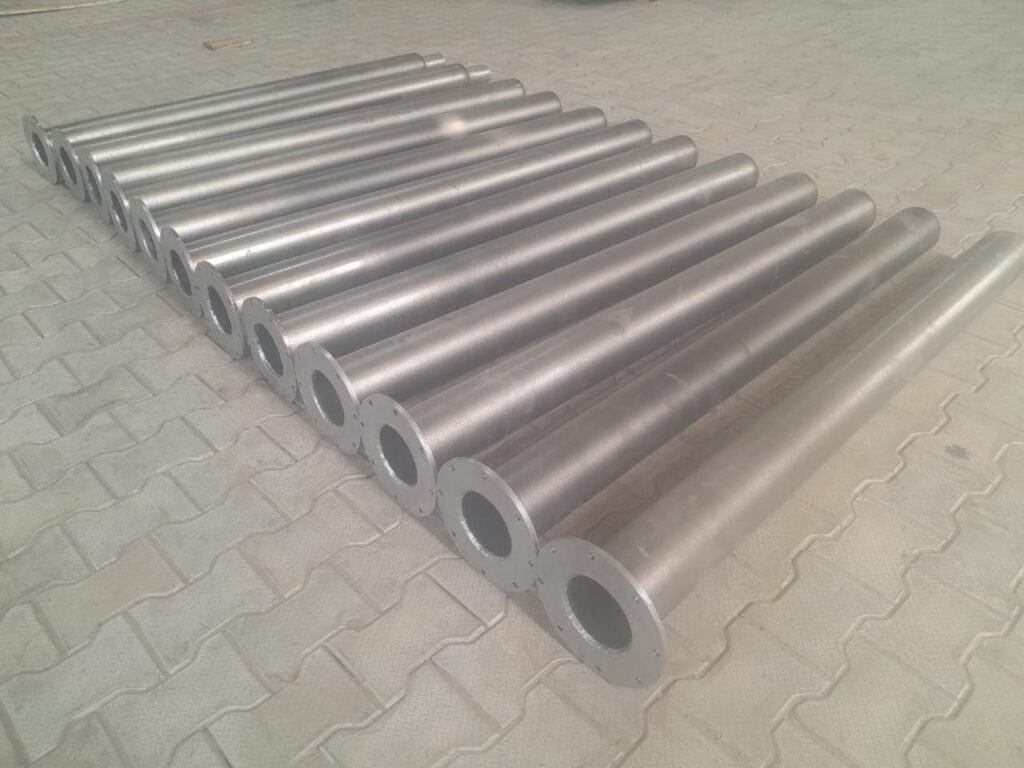

Application 2: Radiant Tubes
Application Overview
Radiant tubes are critical heating components used in heat treatment furnaces, annealing lines, and thermal processing plants. These tubes operate continuously at high temperatures and must maintain structural integrity under thermal cycling conditions.
Why Centrifugal Casting for Radiant Tubes?
Centrifugal casting ensures directional solidification, dense outer wall structure, uniform grain distribution and reduced internal defects. These properties enhance high-temperature strength and long operational life.
Casting Requirements
| Parameter | Requirement |
| Tube Length | 2 – 6 meters (customizable) |
| Diameter Range | 100 mm – 1200 mm |
| Material Grades | HK40, HU, 25Cr35Ni, Heat Resistant Alloys |
| Operating Temperature | Up to 1100–1200°C |
| Wall Thickness Control | Uniform centrifugal distribution |
Recommended Machine Solution
HCC Series – Horizontal Centrifugal Casting Machine
- Long-bed support for tube casting
- Stable RPM control for uniform wall thickness
- Controlled cooling integration
- Optional PLC automation (ACS Series)
Technical Advantages
- High creep resistance due to dense microstructure
- Reduced internal porosity
- Extended furnace service life
- Consistent metallurgical properties
